Terahertz Spectroscopic System TAS7400

The TAS7400 product line offers a series of low-cost, all-purpose spectroscopic systems that enable spectroscopic measurements using terahertz (THz) waves. The tools are capable of performing non-destructive analysis on a wide variety of sample types, making it applicable to a broad range of fields from life sciences to electronics, where precise chemical and material characterization is critical. The systems are ideal for settings ranging from basic research to product development, as well as for manufacturing and quality control, and employ easy-to-use spectroscopic methods that do not require specialized knowledge of THz wave generation or optics.

Low-cost, all-purpose THz spectroscopic system offers superior spectroscopic performance
Compact desktop form factor
THz spectroscopic analysis in a range of frequencies (0.03–7 THz)
Transmission, reflectance, ATR (Attenuated Total Reflection), and transmission polarization measurement modes support spectroscopic analysis of a wide variety of materials
Dry air filter unit attached, so that measurements will be unaffected by water vapor absorption
A full range of holders and cells to handle aqueous solutions, powders, and other types of samples

Product Lineup and Applicable Fields

Field ／ Product		SLLow-frequency spectroscopy 0.03 to 2 THz	SPStandard-band spectroscopy 0.1 to 4 THz	SUWide-band spectroscopy 0.5 to 7 THz	TSCover all TS bands 0.03 to 7 THz
Academic research	Basic science – Physics, chemistry, medical, physiology	○	○	○	○
Material	– Electronical and insulating materials for 5G and 6G – Radio wave absorber	○	–	–	○
Chemical	– Liquid crystal – Polymer, rubber – Glass, etc.	–	○	○	○
Food	– Beverage, alcoholic liquor, flavoring	–	○	○	○
Pharmaceutical	Pill, solid medicine, active pharmaceutical ingredient – Crystal, hydrate – Density, hardness, tensile strength Biological medicine	○	○	○	○

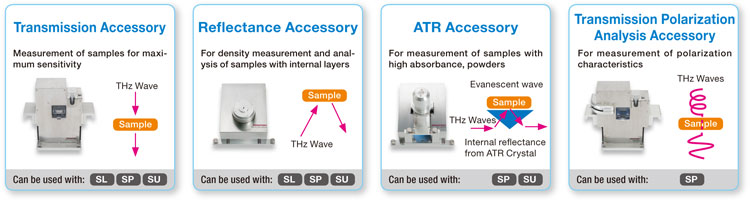

Measurement Accessory Supporting a Wide Range of Spectroscopy Needs

img_tas7400-6_en

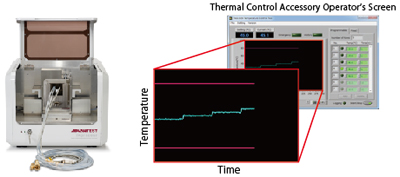

Thermal Control Accessory (Option for Transmission Accessory)

This accessory enables analysis of very high / very low temperature samples using the transmission accessory.
Two models are available, with operating ranges of -10 to +80°C (TAS1020) and room temperature to +300°C (TAS1030).
Dry air purge function prevents condensation at low temperatures.

img_tas7400-8_en

Basic Configuration of the TAS7400 Series

img_tas7400-7_en

Superior Performance

High Troughput

Advantest’s proprietary sampling technique—an electronically controlled sweep method—delivers higher throughput than any previous system.
Highly stable measurement reproducibility

Advantest’s proprietary low-jitter optical fiber laser technology and independently developed analog signal analysis technology enables highly stable reproduction of refractive index (phase) measure-ments to within ±0.03 % (typ.).
Wideband THz spectroscopic analysis

The TAS7400SP, along with two specialized spectroscopic analysis systems—the TAS7400SL and the TAS7400SU—provide bandwidth coverage required to serve a broad array of applications.
