6GHz Board Network Analyzer R3760
Compact size, light weight, low power consumption of less than 20 W, and with the capacity to drive up to eight units in parallel.
Frequency range | 300MHz to 6GHz |
Output level | 0dBm to -10dBm (≤3GHz) |
Measurement parameter | Transmission / Reflection |
External dimensions | PCI board, half size, 2slots |
Input / output | Parallel I/O (Standard) |
300MHz Board Network Analyzer R3755A
Compact size, light weight, low power consumption of less than 15 W, and with the capacity to drive up to eight units in parallel.
Frequency range | 10kHz to 300MHz |
Output level | +18dBm to -43dBm (1MHz to 300MHz) |
Measurement parameter | A/R |
External dimensions | PCI board, half size, 1slots |
Input / output | Parallel I/O (Standard) |
Key Features
- The new board network analyzer used including in a personal computer.
- Software development environments: Microsoft VB and C++.
- Provide a production line with optimality space-saving and cost-saving.
* Please inquire about recommended personal computer.
Advantest Corporation ("Advantest") provides this sample software on a free of charge basis for use with the R3755A/R3760 measuring instruments. This sample software is a copyrighted work of Advantest, and Advantest is and shall remain the sole owner of the sample software and all related intellectual property rights. Please read this notice in its entirety before downloading the sample software. Please strictly observe the precautions included in this notice and described in the instruction manual for the sample software where provided.
INSTALLER FORMAT; INSTALLATION ENVIRONMENT
The sample software is for use with the measuring instruments above on the Windows XP, Vista, 7 (32 bit or 64 bit OS) platforms. For your reference, the sample software available may include a basic instruction manual (English versions may not be available for all sample software).
Advantest is offering the sample software in the format of the following.
- Installer
It is possible to use it at once by installing software in the PC. Please execute un-installation from "Deletion of the program" in the PC. - Source Code
Please use it with Visual Basic (6) for development. There is sample software without the source code either. - Manual
This is an operation explanation. However, it doesn't explain the source code.
PRECAUTIONS
| Caution Advantest is not responsible for any data that is lost during use of this software. Back up your data regularly to prevent the risk of data loss in the case of computer malfunctions. |
| Strictly Observe Never power off the system or remove the disk while USB, CD-ROM, or other access lamps are on. Failure to follow this instruction may cause computer failure or data loss. |
* Windows, Visual Basic and Excel are registered trademarks of Microsoft Corporation in the United States and other countries.
* National Instruments, NI and LabVIEW is trademarks of National Instruments.
* ASCII is a trademark of ASCII media works.
* Other product and company names listed are trademarks or trade names of their respective companies.
CONDITIONS OF USE
- Advantest provides this sample software "as is" without warranty of any kind and Advantest's liability for this software is limited to the fullest extent permitted under the law. This software is subject to change without notice.
- Advantest will not accept customer requests for correction, improvement, or additional functions to the sample software. Advantest will not provide any support or respond to any inquiries relating to the sample software.
- You may use the sample software solely for your own business operations and solely with Advantest products that you own within the recommend operation environments. You may not allow any third party to use this software.
- Advantest assumes no responsibility whatsoever for any direct, indirect, or particular damages (including cases in which Advantest has or could have foreseen an occurrence of damages or a possibility of damages has been noticed) and damages arisen from your lost earnings or a third party's claim for damages against you, resulting from the use or failure of this software.
- Advantest assumes no responsibility whatsoever for any and all negative effects resulting from any use other than that described in this document or in the manuals of any other products.
- Advantest hereby declaims all warranties with respect to the sample software, including the implied warranties of merchantability, fitness for a particular purpose, title, accuracy, and non-infringements of a third party's rights. In no event will Advantest be liable for any damages or losses of any kind arising out of the use of the sample software.
Firmware
Software Download | Contents | Language / Config. |
Applicative Product: R3755 R3755 NACServer Final Version Applicative Products: R3755A, R3760 Series R3755A R3760 NACServer | This software controls start and termination of the firmware of R3755, R3755A and R3760 series board network analyzer. and does the interface with the application software. Operating System:Windows 10 (64bit), 7 (32 bit or 64 bit OS), XP, Vista | |
Application
Software Download | Contents | Language / Config. |
R3755A R3760 Analysis | This is application software that controls R3755A and R3760 series board network analyzer using GUI. | - Installer
- Source Code (VB)
|
R3755A R3760 RFID | This is the RFID measurement application software that controls R3755A and R3760 series board network analyzer. | - Installer
- Source Code (VB)
- Manual
|
R3755A R3760 Ant_Chk | - This software is for R3760 antenna measurement.
- The measurement and the judgment are preserved in the file.
- S11, S21, S22, and S12 measurement becomes possible, when R3760 and A170010(DPDT) SW-BOX are combined.
| - Installer
- Source Code (VB)
- Manual
|
R3755A R3760 Ant_Para | - This software is for R3760 antenna measurement in production.
- Antennas up to four can be measured and preserved.
- Four kinds of S11 simultaneous measurement becomes possible, when R3760 and A170009(SP4T) SW-BOX are combined.
| - Installer
- Source Code (VB)
|
LabVIEW Driver
Software Download | Contents | Language / Config. |
R3755A R3760 LV2012_driver | - This is LabVIEW driver of R3755A and R3760 series.
- The same driver function as VB version bis.dll is prepared.
| |
- Make your PC a Network Analyzer
- More affordable cost than bench type analyzers
- PCI card-type best fitted for system integration
The embedded Network Analyzer realizes test cost reductions and space-saving solutions for manufacturing, test systems and maintenance equipment.

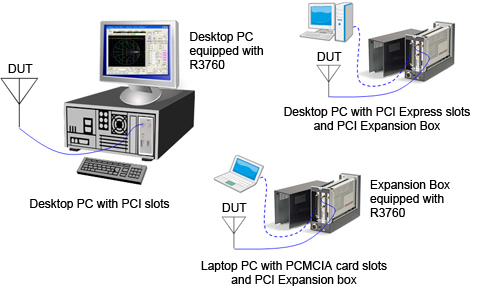

Return loss / VSWR measurement of antenna
R3760 provides test cost reduction of antenna such as for cell phone, WiFi, GPS, and vehicle.

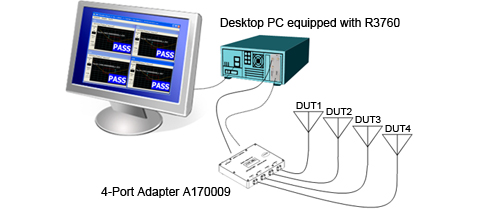

Multi-port measurement for antennas
R3760 with A170009 enables 4-device measurement of reflection characteristics at a low cost.

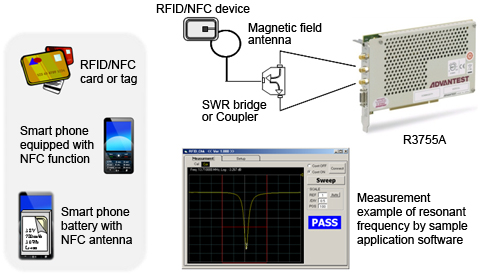

Resonant frequency measurement of RFID/NFC
R3755A brings resonant frequency measurement of RFID/NFC (Near Field Communication) devices using 13.56 MHz signal and contributes to cost reduction in development, production or maintenance.

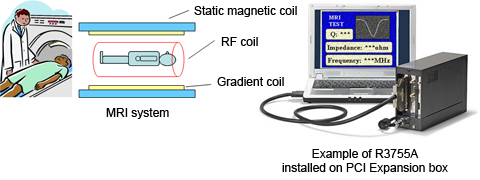

Production, installation and maintenance of MRI system
MRI systems require appropriate antenna in its equipment and it is important to adjust resonant characteristics associated with SNR. R3755A can measure the resonant characteristics (VSWR, Impedance and Q value) at low cost.

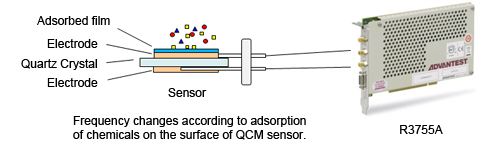

Quartz Crystal Microbalance (QCM) system
QCM system which uses quartz resonator as sensor is one of the methods to quantify chemicals. The technique takes advantage of resonant frequency change of the quartz crystal as substances are adsorbed on surface. R3755A can solve shortcomings of the conventional way using a frequency counter and an oscillating circuit.

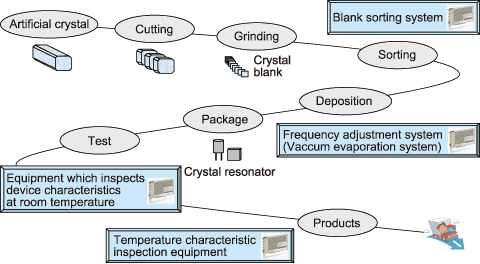

Crystal resonator manufacturing and testing
R3755A is applicable in various phases of manufacturing and testing for crystal resonators.
